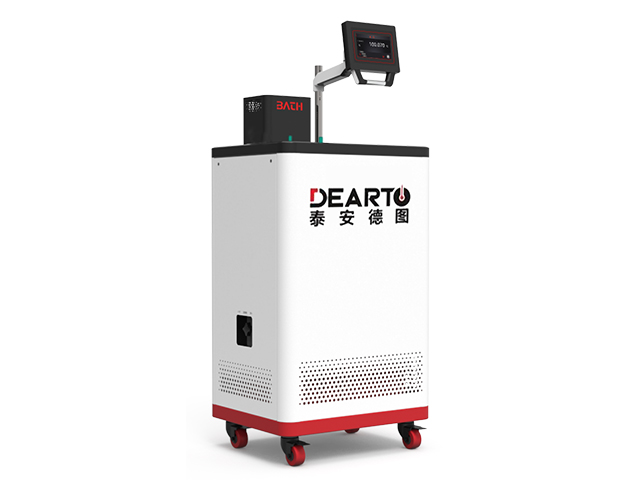

DTS-CHG Ultra-Refrigerated Temperature Calibration Bath is one of the special customized series of refrigerated calibration bath launched by our company, which can meet the customization/calibration of various temperature sensors.Among them, The cooling effect of DTS-180CHG refrigeration calibration bath can reach the lowest temperature of -180 degrees.(Special index products can be customized according to requirements)
Technical Parameters
Model
DTS-100CHG calibration bath
DTS-160CHG calibration bath
DTS-180CHG calibration bath
Control style
Precision meter control(Optional intellgent touch screen)
Temperature range
-100℃～95℃
-160℃～40℃
-180℃～-40℃
Temperature uniformity
≤0.01℃
≤0.05℃
≤0.05℃
Temperature fluctuation
≤0.01℃/30min
≤0.03℃/30min
≤0.03℃/30min
Working zone
￠130×480(mm)
￠6,￠12×280(mm)(customizable)
Overal dimensions
800*600*1000(mm)
500*620*600(mm)
Power supply
220V(Optional 380V)
220v
DTS-CHG Ultra-Refrigerated Temperature Calibration Bath
